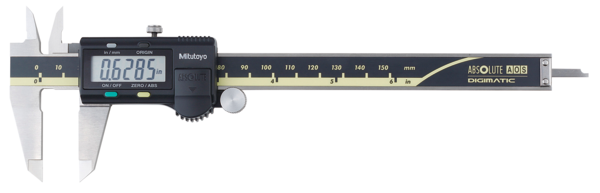

Mitutoyo 500-196-30 Absolute Digimatic Caliper, Range 0-6"

The Mitutoyo 500-196-30 Absolute Digimatic Caliper is a precision measuring instrument designed for accurate internal, external, depth, and step measurements up to 150 mm (6"). Featuring Mitutoyo's proprietary ABS (Absolute) electromagnetic inductive sensor, this caliper eliminates the need to reset the origin each time the tool is powered on — delivering reliable, drift-free readings in any workshop or quality lab.

Built with carbide-tipped outside jaws for extended wear resistance and equipped with SPC data output, the 500-196-30 is ideal for integration into statistical process control systems across manufacturing, inspection, and engineering environments in the UAE and beyond.

✦ Key Features

ABS Absolute Scale — Electromagnetic inductive sensor retains origin position even after power-off; no re-zeroing required at startup.

150 mm / 6" Measuring Range — Versatile capacity for a wide variety of internal, external, depth, and step measurements.

±0.02 mm Accuracy — Meets stringent dimensional tolerance requirements for precision machining and quality inspection.

0.01 mm / 0.0005" Resolution — Large, easy-to-read LCD displays measurements in both metric and imperial units.

Carbide-Tipped OD Jaws — Hardened measuring faces on outside jaws resist wear from repeated use on metal workpieces.

SPC Data Output — Integrated output port connects to Mitutoyo data processing devices for real-time statistical process control.

Thumb Roller & Lock Screw — Smooth, one-handed slider operation with a locking mechanism to hold measurements securely.

Long Battery Life — SR44 battery provides approximately 3.5 years of continuous use under normal conditions.

📐 Technical Specifications

🏭 Applications

CNC Machining & Milling — Verify part dimensions, slot widths, and step heights during setup and in-process checks.

Quality Control & Inspection — Perform incoming material inspection and final part verification with traceable accuracy.

Tool & Die Making — Measure cavities, punch dimensions, and die clearances with confidence.

Maintenance & MRO — Quick, reliable measurements for repair, overhaul, and equipment servicing across UAE industries.

Education & Training — Industry-standard instrument for teaching precision measurement techniques in technical institutes.

🔧 Why Buy from San Tools?

Authorized Mitutoyo Supply — Genuine instruments sourced through official channels with full manufacturer warranty.

UAE-Based Stock — Ready for fast delivery across Dubai, Abu Dhabi, Sharjah, and all Emirates.

Expert Technical Support — Our team understands precision metrology and can help you select the right tool for your application.

Competitive Pricing in AED — Transparent pricing with no hidden charges; bulk and corporate enquiries welcome.

❓ Frequently Asked Questions

Q: Does this caliper need to be zeroed every time it's turned on?
A: No. The ABS Absolute scale retains the origin position even when powered off, so the caliper is ready to measure as soon as you turn it on.

Q: Can I connect this caliper to a computer for data logging?
A: Yes. The 500-196-30 has an SPC data output port compatible with Mitutoyo's USB Input Tool IT-016U and other Digimatic data collection devices.

Q: What is the IP67 rating on this caliper?
A: With the SPC output cap in place, the caliper meets IP67 protection against dust ingress and temporary water immersion — ideal for shop-floor environments.

Q: Is a storage case included?
A: Yes. The caliper ships in a protective plastic storage case with the SR44 battery pre-installed.
