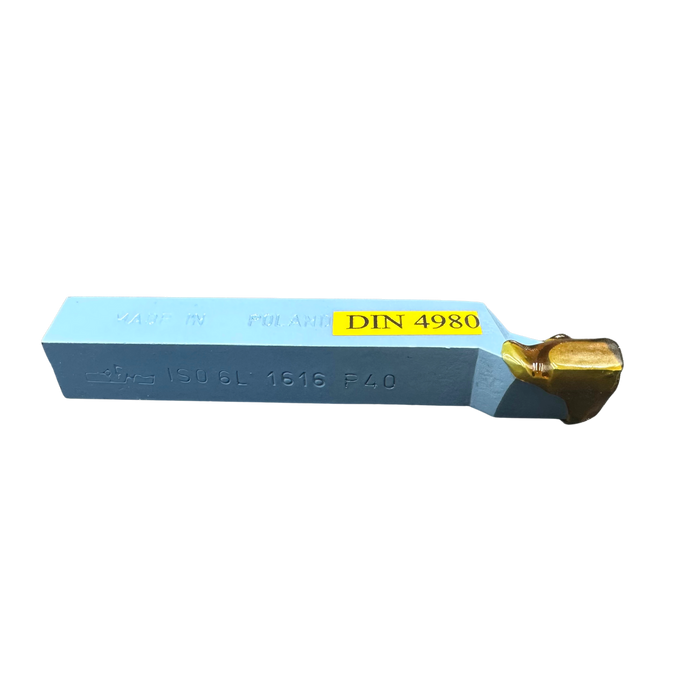

Side Brazed Turning Tool ISO6 - Pafana (Poland)
The Pafana ISO6 Side Brazed Turning Tool is a carbide-tipped, brazed lathe turning tool manufactured by Pafana of Poland. It is used for general turning operations on manual and CNC lathes, and is stocked and supplied by SAN Tools in the UAE from our Dubai Al Quoz, Sharjah and Ajman branches.
Key features
- ISO6 side-brazed design — a carbide tip is brazed onto a steel shank in the ISO6 style, ready to use directly in a standard toolholder.
- Right and left hand versions — available in both right-hand and left-hand cutting styles to suit the direction of cut required.
- Multiple carbide grades — supplied in P40, K20 and P30 carbide grades to suit different materials and turning conditions.
- Range of body sizes — available in 8x8, 10x10, 12x12, 16x16, 20x20 and 25x25mm shank sizes to fit different toolholders and lathe sizes.
- Manufactured by Pafana (Poland) — a dedicated carbide brazed turning tool manufacturer.
Applications
- General turning and facing on manual and CNC lathes
- Toolroom and production lathe work
- Right- or left-hand turning operations depending on setup
Specifications
| Attribute | Detail |
|---|---|
| Vendor / brand | Pafana (Poland) |
| Product type | Lathe Tool |
| Style | ISO6, side brazed |
| Body sizes | 8x8, 10x10, 12x12, 16x16, 20x20, 25x25mm |
| Hand | Right, Left |
| Grades available | P40, K20, P30 |
| Sizes / variants available | Combinations of body size (8x8–25x25mm), Right/Left hand, and P40/K20/P30 grade — see options on the product page |
How to choose
- Match right- or left-hand to your cut direction and toolholder setup on the lathe.
- Pick the body size to fit your toolholder pocket — larger shank sizes (20x20, 25x25mm) suit heavier cuts and larger lathes.
- Select the carbide grade for your material — P40, K20 and P30 grades are suited to different workpiece materials and cutting conditions; ask our team if unsure.
Frequently asked questions
What body sizes are available?
Body sizes of 8x8, 10x10, 12x12, 16x16, 20x20 and 25x25mm are available, in right-hand and left-hand versions.
Which carbide grade should I choose?
P40, K20 and P30 grades are available, each suited to different materials and cutting conditions. Our team can help match a grade to your application.
Is this available with delivery in the UAE?
Yes. Available from our Dubai, Sharjah and Ajman branches with UAE-wide delivery; request a quote or WhatsApp +971 52 132 7742.
Browse all Pafana carbide brazed tools or request a quote for your ISO6 turning tool.
