Vertex Hydraulic Vise - Machine Vises,VH-4,5,6,8,8L,12
The Vertex Hydraulic Vise (VH series) is a hydraulic-booster machine vise used to clamp workpieces on milling machines, drilling machines, grinders and other machine shop equipment. It gives high clamping pressure from low hand-lever effort, making it a popular choice for toolroom and production milling setups. Stocked and supplied by SAN Tools in the UAE from our Dubai Al Quoz, Sharjah and Ajman branches.
Key features
- Hydraulic-booster clamping system — delivers maximum clamping pressure from minimum hand-lever force, for quick, consistent locking.
- Ductile cast iron body — the body resists deflection and bending under heavy cutting loads.
- Flame-hardened and ground bed ways — the sliding bed ways are flame hardened and ground for smooth, wear-resistant movement.
- Concealed spindle — the spindle is shielded from chips and dirt to protect accuracy over time.
- Repeatable accuracy — rated to within 0.02mm, suitable for precision milling, drilling and grinding work.

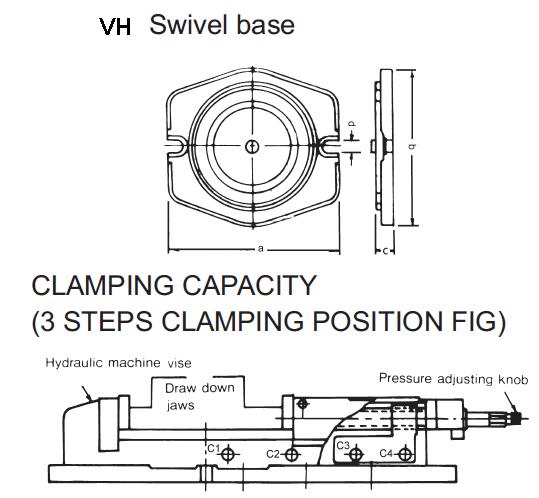

- Fixed or swivel base — available with or without a swivel base (HS-4/5/6/8 swivel base fits VH-4/5/6/8) for angled clamping setups.
Applications
- Milling, drilling, shaping and grinding operations
- Holding workpieces on machining centres and manual mills
- Toolroom and production machine shop workholding
- Jobs requiring high clamping force with fast, repeatable locking
Specifications
| Attribute | Detail |
|---|---|
| Vendor / brand | Vertex |
| Product type | Milling / machine vise |
| Body material | High quality ductile cast iron |
| Bed ways | Flame hardened and ground |
| Clamping system | Hydraulic-booster |
| Accuracy | Within 0.02mm |
| Hydraulic oil grade | ISO 68# |
| Swivel base option | HS-4/5/6/8 swivel base for VH-4/5/6/8 |
| Sizes / variants available | VH 4, VH 5, VH 6, VH 8, VH 12 |
How to choose
- Match jaw width to your table T-slots and workpiece size — larger VH models suit bigger workpieces and heavier milling cuts.
- Add the swivel base if you regularly need to clamp workpieces at an angle on the mill table.
- Check your machine table size and travel before selecting a vise size, since larger vises need more table space and stroke clearance.
- Keep the hydraulic system topped up with ISO 68# hydraulic oil to maintain full clamping pressure.
Frequently asked questions
What is the accuracy of the Vertex hydraulic vise?
It is rated to within 0.02mm, making it suitable for precision milling, drilling and grinding applications.
Can I get the vise with a swivel base?
Yes. The HS-4/5/6/8 swivel base is designed to fit the VH-4, VH-5, VH-6 and VH-8 models, letting you rotate the vise to a set angle on the table.
Is this available with delivery in the UAE?
Yes. Available from our Dubai, Sharjah and Ajman branches with UAE-wide delivery; request a quote or WhatsApp +971 52 132 7742.
Browse all clamping and holding solutions or request a quote for your Vertex hydraulic vise.
