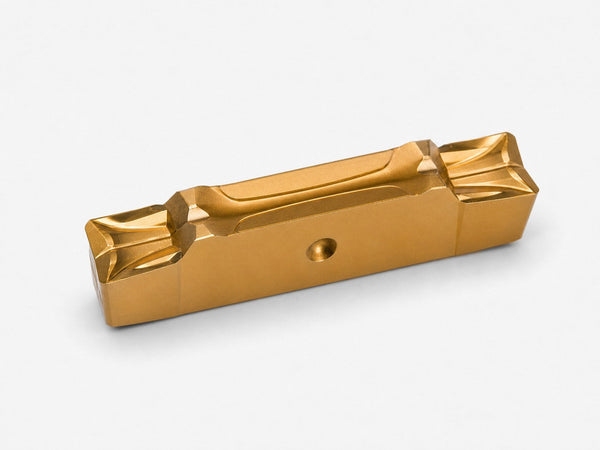

MGMN300-M NC3030 Carbide Parting Insert 3mm Width - KORLOY
The Korloy MGMN300-M NC3030 is a carbide indexable parting and grooving insert, 3mm in width, used on CNC and manual lathes for parting off and grooving operations. It is used by machine shops running production turning work that need a durable, double-ended insert for heavy parting on bar stock. SAN Tools stocks the Korloy MGMN300 range from our branches in Dubai (Al Quoz), Sharjah and Ajman, with UAE-wide delivery.
Key features
- Double-ended insert — two usable cutting edges per insert, giving better value per insert changeover.
- NC3030 CVD-coated grade — a long-running, steel-friendly carbide grade for consistent tool life in production turning.
- M-style chipbreaker — designed for medium feed rates with a robust cutting edge that resists chipping.
- 3mm insert width — suited to standard 3mm-width parting and grooving holders.
- Compatible with common holder series — fits MGEHR/L, MGIVR/L and MGFHR/L type holders (3mm width).
Applications
- Heavy parting off on bar stock diameters of 25–60mm
- Deep grooving operations on CNC and manual lathes
- Production turning in rigid machine setups
- General parting and grooving in steel and steel alloys
Specifications
| Attribute | Detail |
|---|---|
| Brand | Korloy |
| Insert designation | MGMN300-M |
| Grade | NC3030 (CVD-coated carbide) |
| Type | Double-ended indexable parting / grooving insert |
| Width | 3mm |
| Chipbreaker | M-style (medium feed, robust edge) |
| Compatible holders | MGEHR/L, MGIVR/L, MGFHR/L (3mm width) |
| Recommended bar diameter | 25–60mm |
How to choose
- Confirm your holder series (MGEHR/L, MGIVR/L or MGFHR/L) accepts a 3mm-width MGMN insert before ordering.
- Use the M-style chipbreaker for medium feed rates on steel; for very deep or heavy-load parting, ensure your setup is rigid enough for the recommended bar diameter range.
- Keep spare inserts on hand for production runs, as double-ended inserts still require periodic indexing and replacement.
- Match coolant and feed rate to the NC3030 grade's recommended cutting parameters for best tool life.
Frequently asked questions
What holders fit this insert?
The MGMN300-M is designed to fit 3mm-width MGEHR/L, MGIVR/L and MGFHR/L type parting and grooving holders.
What is the NC3030 grade suited to?
NC3030 is a CVD-coated carbide grade suited to steel machining, offering long, consistent tool life in production parting and grooving work.
Is this available from stock in the UAE?
Available from our Dubai, Sharjah and Ajman branches with UAE-wide delivery; request a quote or WhatsApp +971 52 132 7742.
