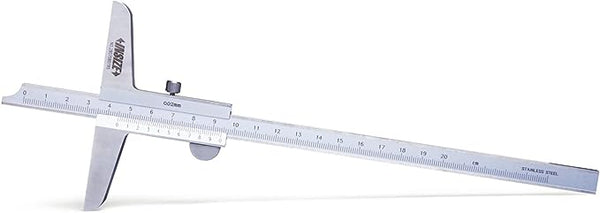

Insize - Vernier Depth Gauge 1240-150- Range 0-150mm - 1240-200 - 0-200mm
The Insize Vernier Depth Gauge is a precision measuring instrument used to measure the depth of holes, slots, steps and recesses on machined parts. It is a standard toolroom and QC instrument for machinists and inspectors, and is stocked and supplied by SAN Tools across our Dubai, Sharjah and Ajman branches in the UAE.
Key features
- Vernier scale reading — a mechanical vernier caliper-type scale gives a direct depth reading without a battery.
- Wide-base design — a flat measuring base sits across the top of the feature being measured while the rod is lowered to the bottom of the hole, slot or step.
- Multiple range options — supplied in three ranges (0-150mm, 0-200mm and 0-300mm) to suit different part sizes.
- Genuine Insize instrument — from Insize's precision measuring instrument range, alongside their calipers, micrometers and gauges.
Applications
- Measuring the depth of blind holes, pockets, slots and steps on machined components
- Toolroom and QC inspection of finished parts
- General workshop measurement wherever a depth reading is required, alongside standard calipers and micrometers
Specifications
| Brand | Insize |
|---|---|
| Type | Vernier depth gauge (calipers) |
| Sizes / variants available | 1240-150 (0-150mm range), 1240-200 (0-200mm range); 1240-300 (0-300mm range) also available in this series |
How to choose
- Select the range (150mm, 200mm or 300mm) based on the deepest feature you need to measure — choosing a range close to your typical depth keeps the instrument easier to handle.
- Make sure the base is fully seated and square across the reference surface before taking a reading, as tilting the gauge will give a false depth.
- For readings requiring finer resolution or digital/electronic output, ask our team about Insize's digital depth gauge options.
Frequently asked questions
What is the difference between the 1240-150 and 1240-200 models?
They are the same vernier depth gauge design in different measuring ranges — 1240-150 measures 0-150mm and 1240-200 measures 0-200mm, letting you pick the range that suits your typical part depth.
Do I need to zero the gauge before use?
Yes — as with any vernier instrument, check the zero reading on a flat reference surface before taking measurements, and confirm the vernier scale reads zero when the rod end is flush with the base.
Is this available from SAN Tools with delivery?
Available from our Dubai, Sharjah and Ajman branches with UAE-wide delivery; request a quote or WhatsApp +971 52 132 7742.
