Insize 6201-60 Magnetic Stand 60KGF

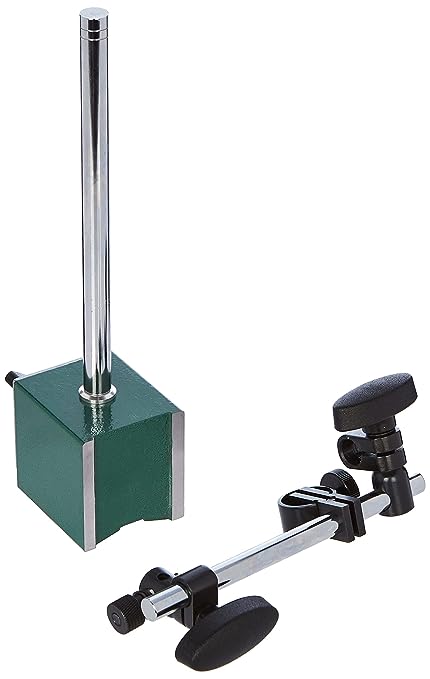

The Insize 6201-60 magnetic stand is a bench-mount holding stand used to position dial indicators and dial test indicators for measurement and inspection work. It clamps its magnetic base to a machine table, surface plate or other ferrous surface and holds the indicator steady on an articulated arm, and is stocked and supplied by SAN Tools across our Dubai, Sharjah and Ajman branches in the UAE.
Key features
- 60kgf magnetic base — a strong on/off switchable magnetic base holds the stand firmly to any ferrous surface during measurement.
- Fine adjustment — a fine-adjustment mechanism allows precise positioning of the indicator once the arm is roughly set.
- Universal indicator mount — the 3/8" diameter clamp hole with 8mm sleeve accepts dial indicators with either lug back or flat back mounting.
- On/off switch base — the magnetic base can be switched off for repositioning and switched on to lock in place, without lifting and re-clamping.
Applications
- Holding dial indicators or dial test indicators for inspection on a surface plate or machine table
- Setting up and checking runout, flatness and alignment in a toolroom or QC department
- General workshop measurement where a stable, repositionable indicator mount is needed
Specifications
| Brand | Insize |
|---|---|
| Model | 6201-60 |
| Magnetic holding force | 60kgf |
| Adjustment | Fine adjustment |
| Clamp hole | 3/8" diameter with 8mm sleeve |
| Indicator compatibility | Lug back or flat back dial indicators |
| Base dimensions | 60 x 50 x 55mm |
| Switch | On/off magnetic base switch |
How to choose
- Confirm your dial indicator has either a lug back or flat back stem so it fits the 3/8" clamp hole with 8mm sleeve.
- Make sure the surface you'll be clamping to is ferrous (magnetic) and reasonably flat, as the base relies on magnetic contact.
- For heavier or larger indicators, or where higher holding force is needed on vertical or overhead surfaces, ask our team about higher-force magnetic stands in the Insize range.
Frequently asked questions
Can the magnetic base be switched off without moving the stand?
Yes — the base has an on/off switch, so you can release the magnetic hold to reposition the stand and then switch it back on to lock it in place.
Will this fit any dial indicator?
It accepts dial indicators with a lug back or flat back through the 3/8" diameter clamp hole with 8mm sleeve, which covers most standard dial and test indicators.
Is this available from SAN Tools with delivery?
Available from our Dubai, Sharjah and Ajman branches with UAE-wide delivery; request a quote or WhatsApp +971 52 132 7742.
