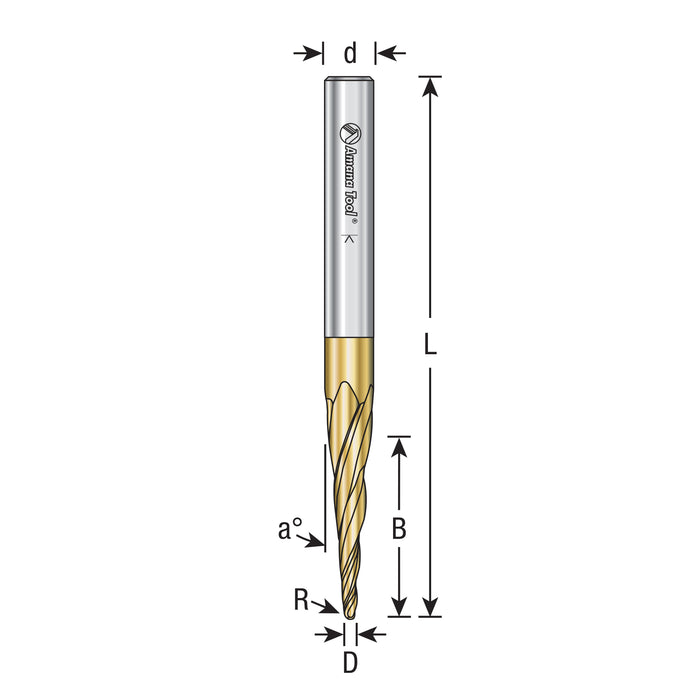

46473 CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Tip x 0.5mm Dia x 0.25mm Radius x 26.5mm x 6mm Shank x 75mm Long x 3 Flute Up-Cut Spiral Solid Carbide ZrN Coated
by Amana Tools
Original price
Dhs. 212.00
-
Original price
Dhs. 212.00
Original price
Dhs. 212.00
Dhs. 212.00
-
Dhs. 212.00
Current price
Dhs. 212.00
Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum & wood with CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup. Some of Amana Tool carving tools, as you can appreciate have a very small diameter therefore any material chip-loads need to reflect that small size. It can however withstand RPM’s up to 60,000 RPMs. A directed air-blast to keep chips away along with cooling the tool and work piece are always welcome.
Tools are manufactured with high balance that allows them to run up to 60,000 RPMs. Adjust your chip load and feed rate accordingly.
Applications:
- A perfect bit for 3D carving
- Precision 2D and 3D large scale carving
- Great for deep profiling
- Dimensional signage
- 3D millwork
- 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
- Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials
