Carbide Inserts in Dubai — Turning, Milling, Threading & Grooving
SAN Tools is a trusted UAE supplier of genuine carbide cutting inserts from Sandvik Coromant, Deskar and Pafana — serving CNC workshops, jobshops, fabrication units and OEM manufacturers across Dubai, Abu Dhabi, Sharjah, Al Ain and Ras Al Khaimah since 1987.
Our carbide insert range covers: negative-rake turning inserts (CNMG, WNMG, TNMG, DNMG, SNMG), positive-rake turning inserts (CCMT, DCMT, VCMT), milling inserts (SPMG, APMT, SEKT), threading inserts (16ER/16IR ISO metric & UN, AG buttress, ACME) and grooving / parting inserts. WhatsApp us with your insert code and we'll match grade, geometry and chip-breaker to your job.
Our Carbide Insert Range
9 high-running insert codes covering turning, threading, grooving and drilling — in stock at SAN Tools Dubai.

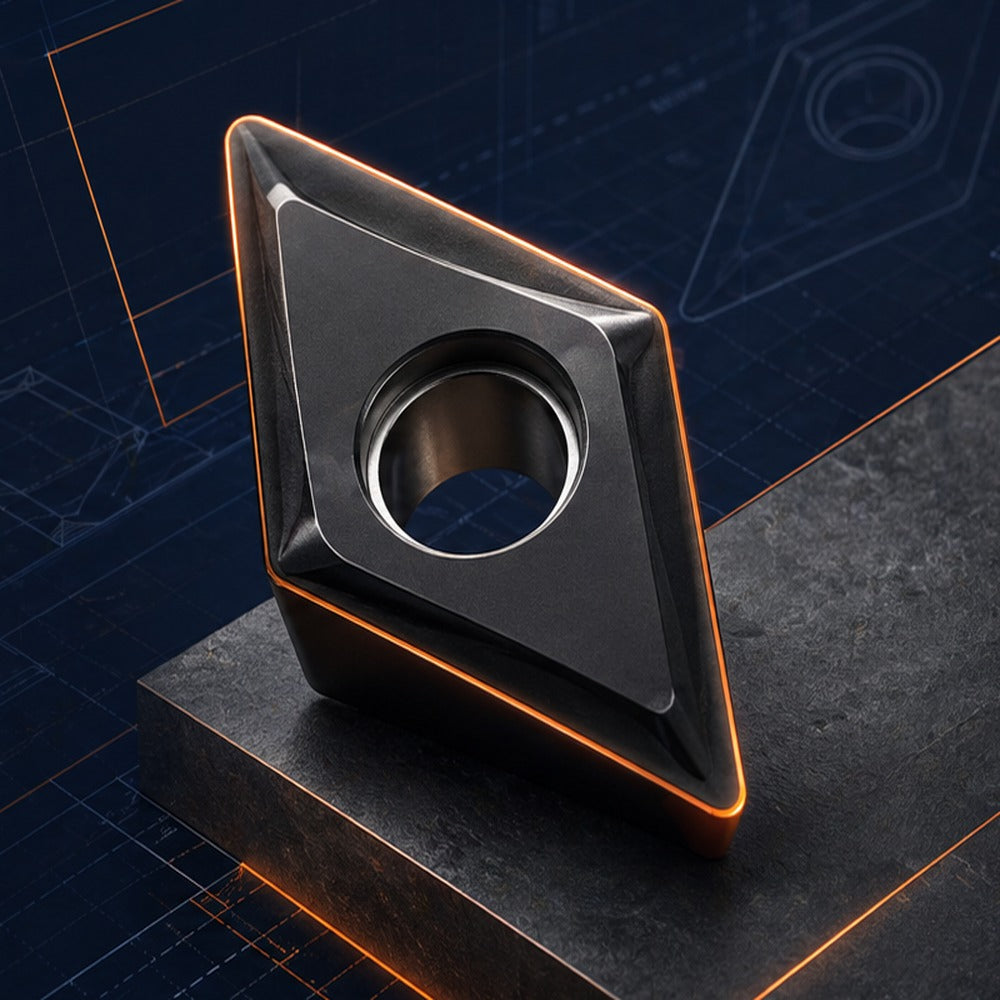

Sandvik CNMG 120408 Turning Insert
The flagship Sandvik universal turning insert — Inveio coating, ISO P/M/K, suits steel, stainless and cast iron.

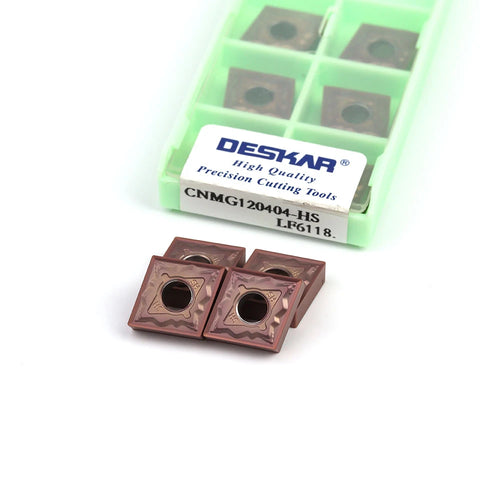

Deskar CNMG 120404 / 120408 LF6118
Workhorse 80° rhombic turning insert in MA/MS/MQ/HS/MM chip-breakers — LF6118 grade is purpose-built for ISO M (stainless).

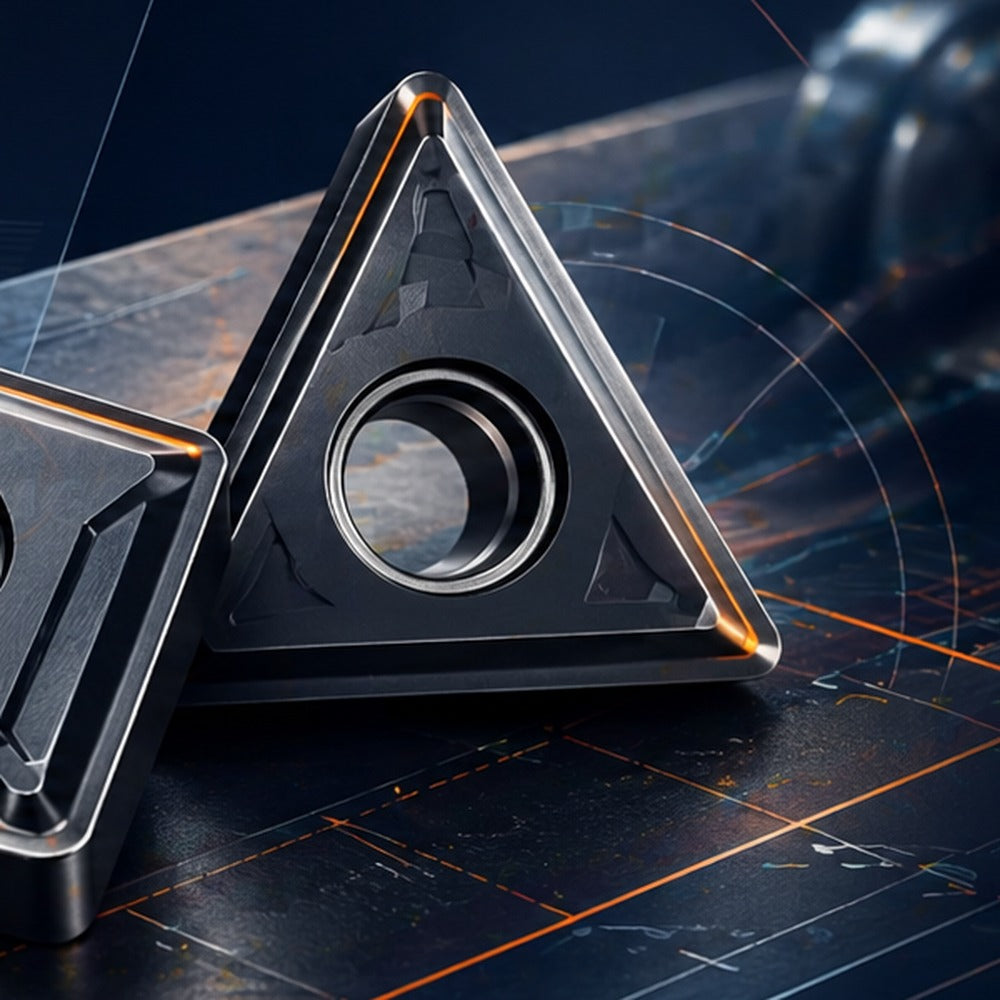

Deskar TNMG 160404 / CNMG 120404 LF6118
60° triangle TNMG plus matching CNMG sizes in one combo — MA/MS/MQ/HS/MM geometries for general turning of stainless and steel.

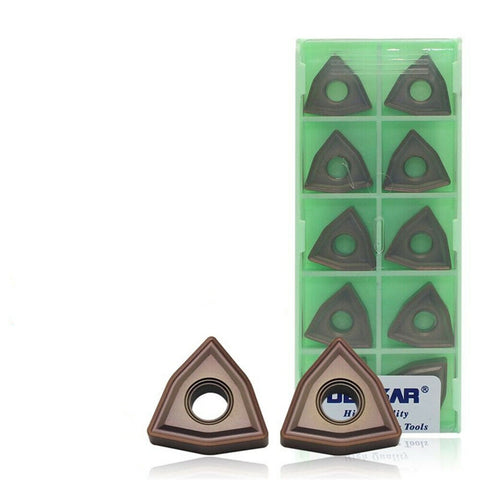

Deskar WNMG 080404 / 080408 LF6118
80° trigon (W-shape) negative insert — six edges per piece, excellent for medium roughing on stainless and structural steel.

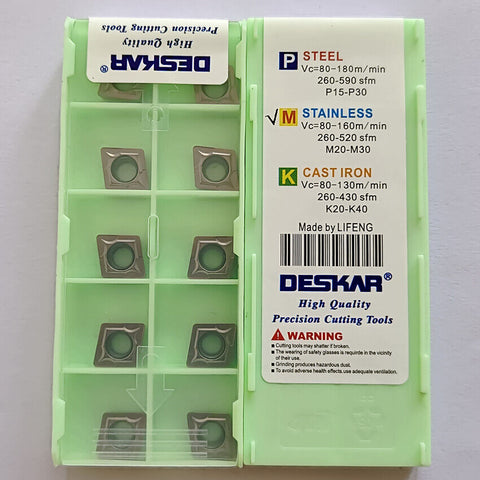

Deskar CCMT 060204 / 09T308 LF6118
Positive-rake CCMT inserts for finishing and boring — sharp edges, low cutting force, ideal for slender shafts and small bores.

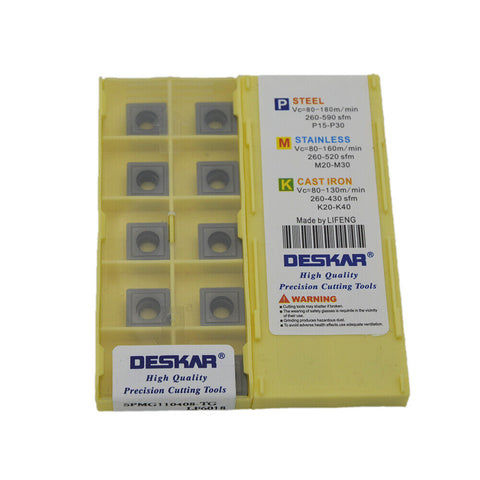

Deskar SPMG 110408-TG LF6018
SPMG indexable drilling insert for U-drills and shallow-hole tools. LF6018 grade for ISO P (carbon & alloy steel).

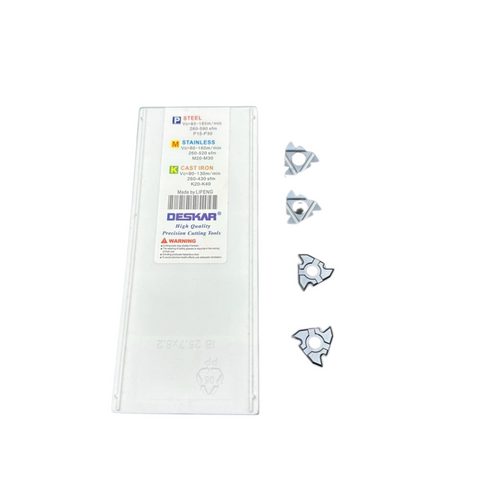

N-Type Threading Insert
Laydown threading insert for ISO metric (60°) and Whitworth/BSPP (55°) profiles — internal and external threading.

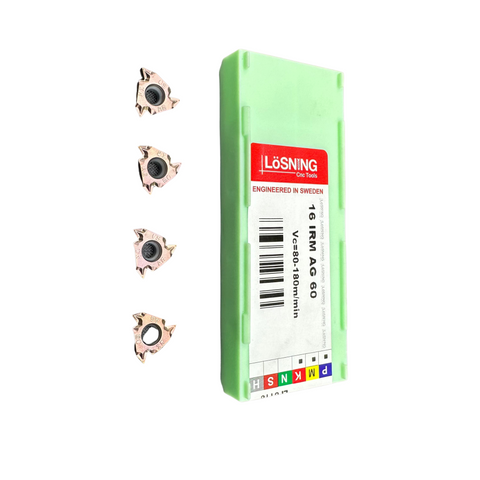

AG Threading Insert
Multi-tooth AG-style threading insert — faster threading by cutting multiple turns per pass on production threads.

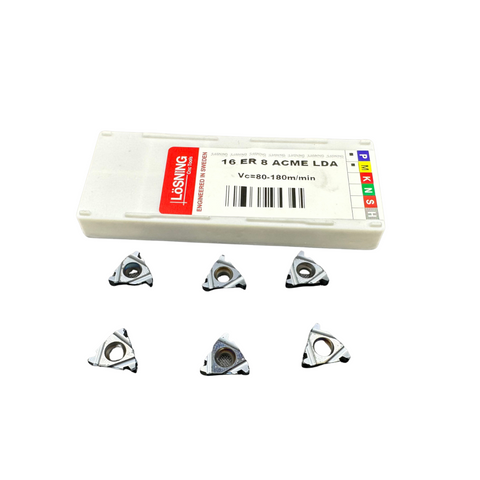

ACME Threading Insert
29° trapezoidal ACME thread inserts — for lead screws, jacks, vice spindles & power-transmission threads.
Decoding ISO 1832 Carbide Insert Codes
ISO 1832 packs the insert shape, clearance, tolerance, type, IC size, thickness and corner radius into a single 7-character string. Once you know the alphabet, you can read any insert at a glance.
CNMG 12 04 08 — C 80° rhombic + N 0° clearance + M tolerance + G hole & chip-breaker + 12 mm IC + 04 mm thick + 08 = 0.8 mm radius. -
C80° rhombic -
D55° rhombic -
SSquare -
TTriangle -
WTrigon -
RRound -
V35° rhombic
-
N0° (negative) -
P11° (positive) -
C7° -
B5° -
D15° -
E20°
-
MStandard -
GCloser -
UWider -
AClass A
-
GHole + chip-breaker -
MHole + one side -
NNo hole, no breaker -
RNo hole, one side -
THole + one side -
WCountersunk hole
-
066.35 mm -
088 mm -
099.525 mm -
1212.7 mm -
1616 mm -
1919.05 mm
-
022.38 mm -
033.18 mm -
044.76 mm -
066.35 mm -
087.94 mm
-
020.2 mm (finishing) -
040.4 mm -
080.8 mm (general) -
121.2 mm (roughing) -
161.6 mm
-
PFFinishing -
PMMedium -
PRRoughing -
MAStainless medium -
MSStainless steel -
MQStainless quiet
Need Help Picking the Right Insert?
Send us your insert code, workpiece material and the operation — we'll match the correct grade, geometry and chip-breaker and quote same day.
Why Buy Carbide Inserts from SAN Tools?
Dubai's most trusted industrial tools supplier since 1987.
Same-Day Stock
CNMG, WNMG, TNMG & threading codes ready in Dubai
Authorised Brands
Genuine Sandvik Coromant, Deskar & Pafana
Grade Matching
We pair the right grade to your workpiece
Free UAE Delivery
On orders over AED 500
Find the Right Insert for Your Job
Quick selector guide — pick the row that matches your workpiece and operation.
- ►Roughing carbon steel? → CNMG 120408 with PR/PM chip-breaker, ISO P grade
- ►General turning stainless? → CNMG/WNMG with MA/MS chip-breaker, ISO M grade (LF6118)
- ►Finishing or boring? → CCMT/DCMT positive insert with PF chip-breaker
- ►Heavy roughing on rigid CNC? → WNMG 080408 (6 edges) or SNMG 120408 with PR breaker
- ►U-drilling / face milling? → SPMG 110408, APMT 1604 or SEKT 1204 indexable inserts
- ►External threading? → 16ER/22ER at 60° (metric/UN) or 55° (BSPP/Whitworth)
- ►ACME / lead-screw threads? → 16IR/22IR ACME insert at 29°
Frequently Asked Questions
Common questions about carbide inserts, ISO codes, grades and ordering from SAN Tools.
What is a carbide insert and how does it work?
A carbide insert is a replaceable cutting edge made from cemented tungsten carbide that clamps into a steel toolholder. When one cutting edge wears, you rotate (index) the insert to a fresh corner without re-grinding.
How do I read an ISO insert code like CNMG 120408?
Each character is position-based per ISO 1832: C = 80° rhombic shape, N = 0° clearance (negative), M = M-tolerance, G = hole with chip-breaker both faces, 12 = 12.7 mm IC, 04 = 4.76 mm thickness, 08 = 0.8 mm corner radius.
What's the difference between negative and positive inserts?
Negative inserts (CNMG, WNMG, TNMG) have 0° clearance and are double-sided — ideal for heavier roughing. Positive inserts (CCMT, DCMT, VCMT) cut more freely with lower force — preferred for finishing, boring and lower-power machines.
Which Sandvik grade should I choose for steel turning?
GC4325 is the first-choice grade for general steel turning. GC4315 handles higher cutting speeds; GC4335 handles interrupted cuts. For stainless steel switch to GC2025 or GC1115.
What does the chip-breaker code (PR / PM / PF / MA / MS) mean?
PR/MR = roughing, deep cuts. PM/MM = medium, general purpose. PF/MF = finishing, light depths. MA/MS/MQ are tuned for ISO M (stainless) to reduce work-hardening and built-up edge.
Can I use a Deskar insert in a Sandvik holder?
Yes — insert codes follow ISO 1832, which is brand-neutral. A CNMG 120408 from Deskar fits the same MCLNR/PCLNR/DCLNR holder as Sandvik. Differences are in the carbide grade, coating and chip-breaker, not the seat dimensions.
Do you stock threading inserts for ACME, metric and Whitworth?
Yes — 11/16/22/27 sizes, both IR/IRM and ER/ERM, in 55° (Whitworth/BSPP), 60° (ISO metric/UN) and 29° (ACME) profiles. WhatsApp us your thread spec and we'll quote the right insert.
Do you ship carbide inserts across the UAE?
Yes — in-stock items ship same-day from Dubai for next-day delivery to Sharjah, Ajman, Abu Dhabi, Al Ain and Ras Al Khaimah. Free delivery on orders over AED 500.
Browse Our Full Carbide Insert Range Below
CNMG, WNMG, TNMG, CCMT, SPMG plus N-Type, AG and ACME threading inserts — all in stock at SAN Tools Dubai.
